Calibration

The description of the gas chromatograph calibration process can be found here.

Analysis

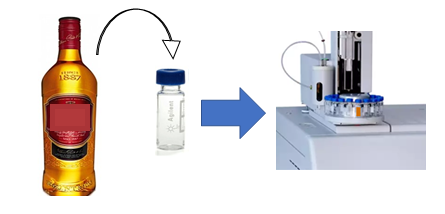

• Inject test sample of whiskey at least three times.

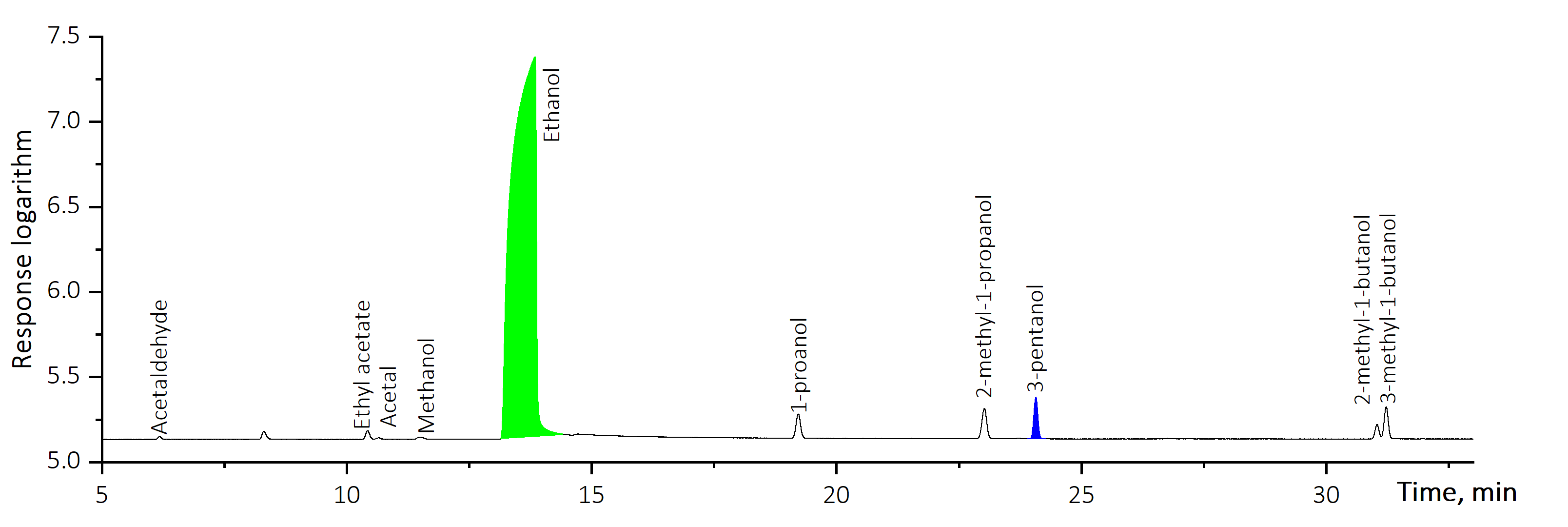

• Process sample chromatograms.



• Using equation below, calculate the concentration of each congener in the samples.



• As a result of calculations, the values ​​of the concentrations of analytes in the dimension mg/L AA.

Compound	Calibration					Analysis
	Certificate, mg/L AA	Response 1, a.u.	Response 2, a.u.	Response 3, a.u.	RRF	Response, a.u.	Concentration, mg/L AA
Acetaldehyde	428.250	26.548	26.676	26.955	1.224	3.581	55.839
Methyl acetate	682.510	34.498	33.961	34.613	1.517	-	-
Ethyl acetate	616.510	43.492	42.927	43.733	1.085	12.347	170.745
Acetal	552.980	52.283	51.473	52.633	0.810	2.301	23.753
Methanol	481.410	31.720	31.521	31.966	1.159	4.810	71.010
Ethanol	789300	60268	59835	60761	1.000	61952	789300
2-butanol	497.890	60.212	59.785	60.769	0.631	-	-
1-propanol	484.060	57.201	56.777	57.634	0.646	42.749	352.032
2-methyl-1-propanol	474.360	66.381	65.845	66.873	0.546	58.385	406.104
3-pentanol	536.020	71.437	70.809	71.924	0.573	70.245	513.259
1-butanol	496.770	64.686	64.272	65.238	0.586	-	-
2-methyl-1-butanol	514.010	72.918	72.392	73.344	0.539	21.255	145.875
3-methyl-1-butanol	492.710	69.622	69.173	70.083	0.541	53.793	370.441
